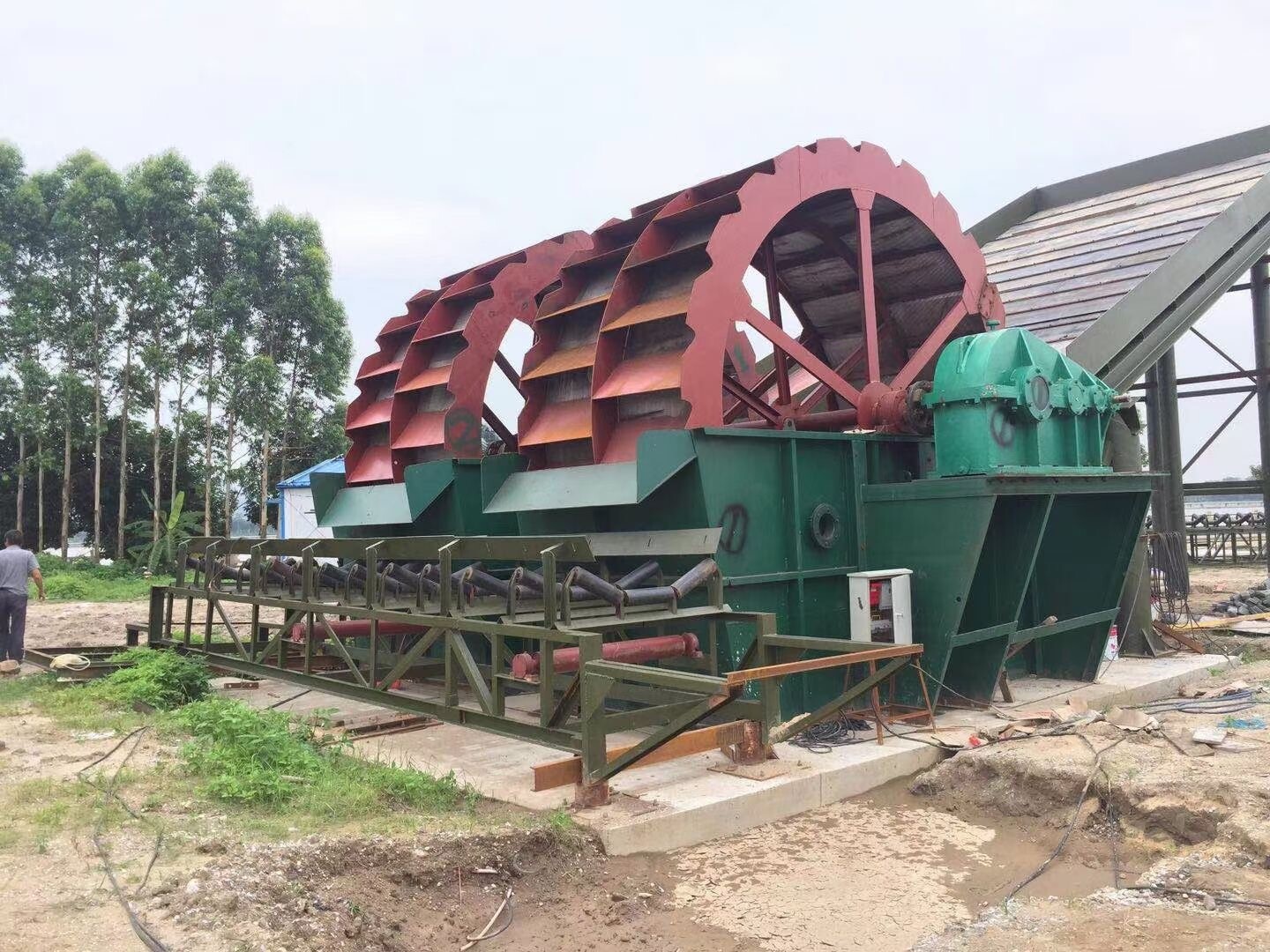

Sand Washing Machine
The sand washing machine is an efficient equipment designed to be used alongside sand making machines. It is known for its high cleaning efficiency, reasonable structure, large processing capacity, low loss of fine sand, and low failure rate. The machine is optimized in two models, specifically designed for cleaning, selection, classification, and dehydration of materials.
Contact Us

Application

1. Efficient Sand Cleaning

2. Classification and Dehydration

3. Widely Used in Various Environments

Features

1. Simple and Reasonable Structure

2. Large Processing Capacity

3. Convenient Maintenance

4. Low Fine Sand Loss

5. Low Failure Rate

Advantages

1. Efficient and Reliable Performance

2. Cost-Effective Operation

3. Wide Application Range

4. Improved Quality of Final Product

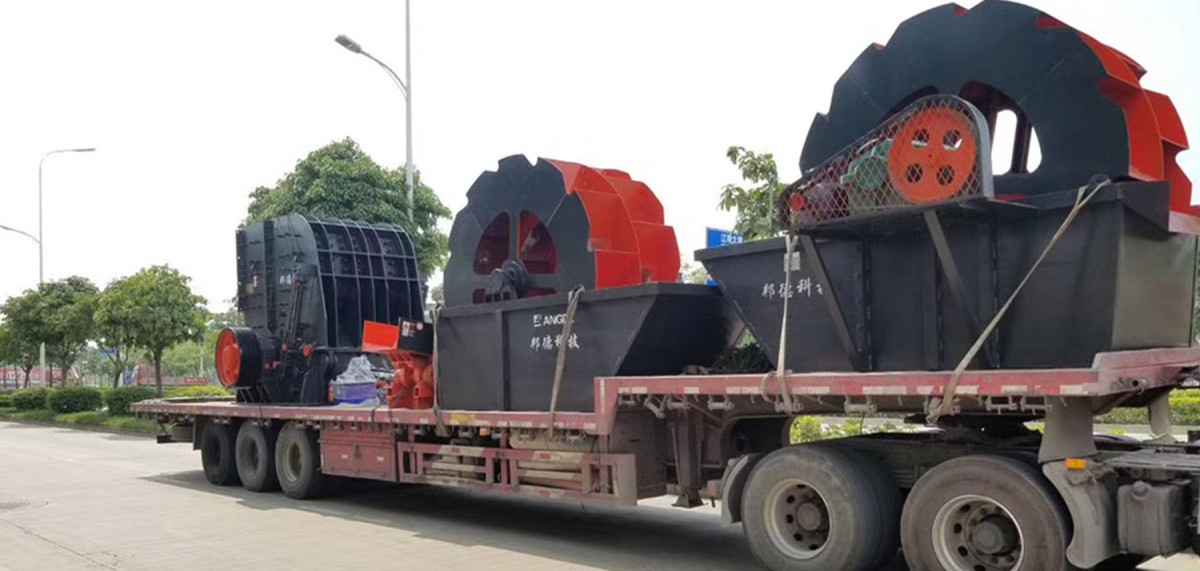

ac91af0c23dee5298a7294dc760a24e-1

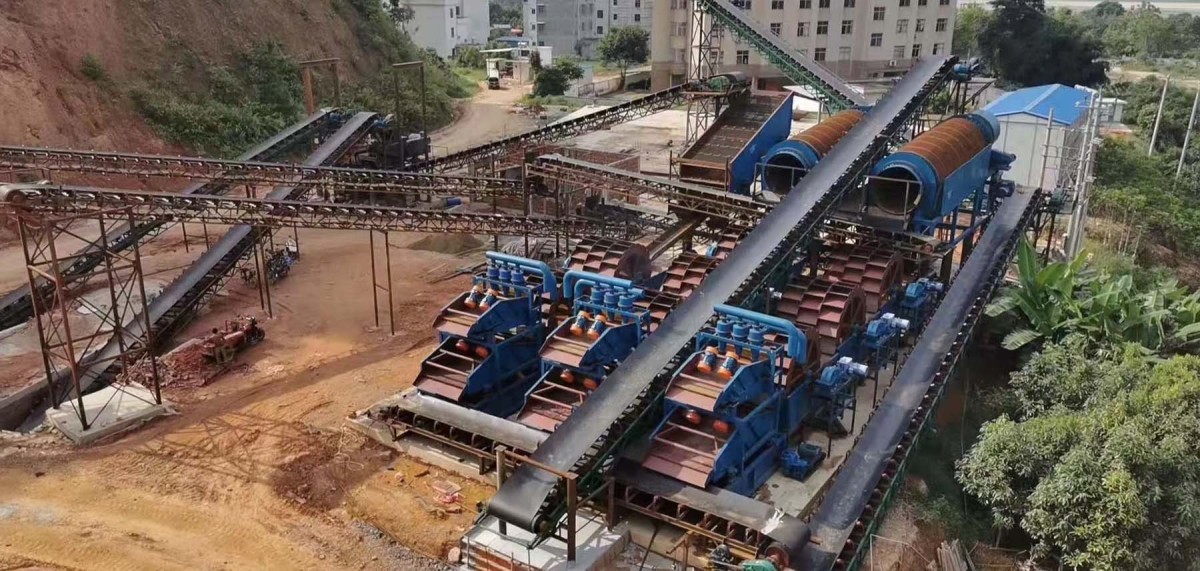

e07d2fa90254345061062fe5e113bcc

Spiral Sand Washing Machinery Model

LX750

LX1000

LX1200

LX1500

Spiral Diameter(mm)

750

1000

1200

1500

Spiral Rotational Speed(r/min)

35

24

24

18

Installation Inclination(°)

20

20

20

20

Motor Power(KW)

5.5

7.5

7.5

11

Capacity(t/h)

32-80

48-125

64-160

80-180

Impeller Sand Washing      Machine Model

XS2600

XS2600 II

XS2800

XS3200

XS3600

Bucket Wheel Diameter(mm)

2600

2600

2800

3200

3600

Rotational Speed(r/min)

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2

0.8-1.2

Processing Capacity(t/h)

10-20

20-40

40-60

60-80

80-100

Motor Power(kw)

4

4

5.5

5.5

7.5

Technical data are subject to change,to Bangde actual product.
